Sightron SV Series Riflescopes 10-50X 60mm MOA-H Code 27011

Call for Price

Sightron SV Series Riflescopes 10-50X 60mm MOA-H Code 27011

Call for Price

✅ Free Delivery ✅ Within Australia on Sightron SV Series Riflescopes 10-50X 60mm MOA-H. Allows for quick and easy adjustments when in the field. The SVSSED Series Feature exposed large locking Tactical Style Turrets that are offered in 1/8 MOA adjustments.

Description

Sightron SV Series Riflescopes 10-50X 60mm MOA-H – Free Delivery within Australia ✅

test_eyebellFast Focus Eyebell

Allows for quick and easy adjustments when in the field.

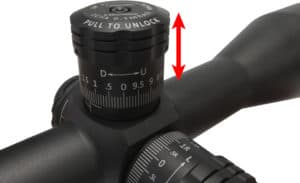

SVSSED Series Locking Tactical Turrets 1/8 MOA
The SVSSED Series Feature exposed large locking Tactical Style Turrets that are offered in 1/8 MOA adjustments.

SVSSED Illumination Switch

The new SVSSED Series features an illumination side-switch with 11 positions. The on/off switch is incorporated in the side focus knob.


34mm Body Tube
34mm body tubes or 1.338 inch tubes are used for increased durability and additional windage and elevation adjustments.
Lifetime Warranty
All products are covered by Sightron’s Limited Lifetime Warranty.

ExacTrack
The ExacTrack windage and elevation adjustment system applies a proper alignment between the adjustments and the erector tube.

ED Glass
ED Glass (Extra Low Dispersion Glass) is a special glass added to optical systems to prevent chromatic aberration.

Zact-7 Revcoat® Multi-Coating
Sightron’s Zact-7 Revcoat® employs revolutionary lens coating technology featuring fully multi-coated precision ground glass.

Waterproof
Rain, snow or humidity, Sightron optics are built using 100% sealed system ensuring a lifetime of performance.
Shockproof
Rated for recoil and impact from even the toughest loads.

Nitrogen Gas Charged
Nitrogen filled to provide a lifetime of use from fogging and internal water buildup.
SPECIFICATIONS:
Item Number:27011
Sku Number:793139-270115
Model Name:SVSSED1050X60ZSIRMOA-H
Magnification:10-50X
Objective Diameter (mm):60
Focal Plane:Second Focal Plane
Fov (ft@100 Yds.):9.6-2.2
Eye Relief (in.):3.8-4.5
Reticle Type:MOA-H (@24X IR)
Click Value (@100 Yds.):1/8 MOA
Minutes Per Revolution:10 MOA
W/E Travel (@100 Yds.):60 / 70 MOA
Knob Style:Tactical (Locking)
Zero Stop:Yes
Focus Type:Side Focus
Parallax Range:13yds to Infinity
Finish:Matte Black
Waterproof:Yes
Fully Multi Coated:Yes (Zact-7 TM 7-Layer)
Weight (oz.):42.7
Length (in.):16.5
Tube Diameter:34 mm
Sunshade Included:Yes
Illuminated Reticle:Yes

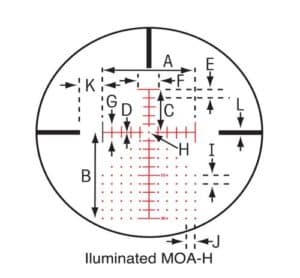

Reticle Dimensions
* all measurements in MOA at 100 Yards

Click the Reticle Below for the SV IR MOA-H Instruction Sheet

Min Power
Indexed at 24 Power
A48
B48
C24
D.24
E4.8
F9.6
G4.8
H.6
I4.8
J4.8
K12
L2.4

A20
B20
C10
D.1
E2
F4
G2
H.25
I2
J2
K5
L1

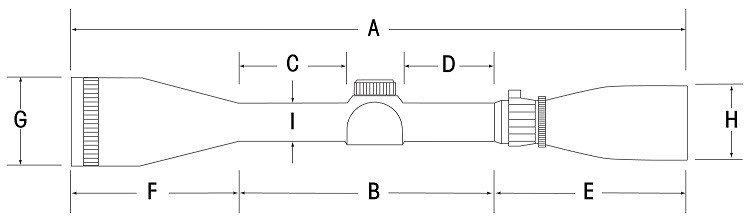

Scope Dimensions
* all measurements in inches (IN)

Click the Riflescope Below for the Instruction Manual







A:16.5
B:6.5
C:2.8
D:2.0
E:3.0
F:6.5
G:2.7
H:1.7
I:34mm
